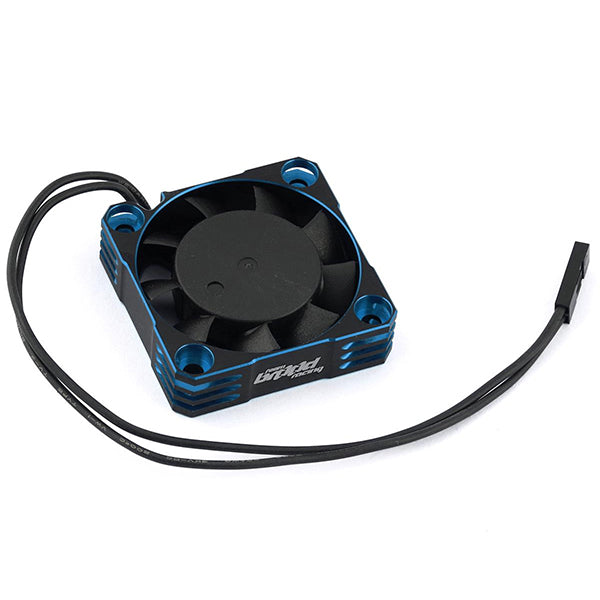

The Team Brood Ventus XL 40mm HV Aluminum Cooling Fan is a high quality fan option developed for high performance applications. The Ventus features a durable aluminum casing that will help to protect the fan blades in the event of a crash. The aluminum case also helps to dissipate heat, allowing cooler operation of the fan motor at speeds up to 28,000 RPM. The increased heat dissipation also helps to prevent internal parts from expanding and causing failure.
The fan is compatible with 2S HV LiPo systems (8.75V max), has dual ball bearings, and is pre-wired with a 2 pin connector that can be plugged directly into the receiver or another source of power. Plus, the flat sides of the aluminum case make it easy to secure the fan directly to the chassis with double side tape. With all these features combined, this fan is an excellent choice for ESCs and motors ranging 1/8 to large scale.
NOTE: For optimal performance, the fan should be installed at least 5mm away from the motor to prevent magnet interference and to allow sufficient air flow.
Features:
- 40mm aluminum cooling fan
- Aluminum casing helps protect the fan blades
- Compatible with 2S HV LiPo systems (8.75V max)
- Anodized blue with silver chamfered edges
- Perfect 1/8 and Large Scale applications
- 2 pin connector for easy installation
- 30 Day Warranty against defects
Specifications:
Dimensions: 40x40x10.75mm
Mounting Pattern: 32x32mm
Weight: 21.5 grams
Material: Aluminum & Plastic
Bearing: Dual Ball Bearing
Operating: Voltage 5V - 8.75V
Fan Speed: 28,000 @ 8.4 Volts
Current: 0.55A
Connector: JWT 2-Pin
Fan Applications: 1/10 and 1/8 Scale
