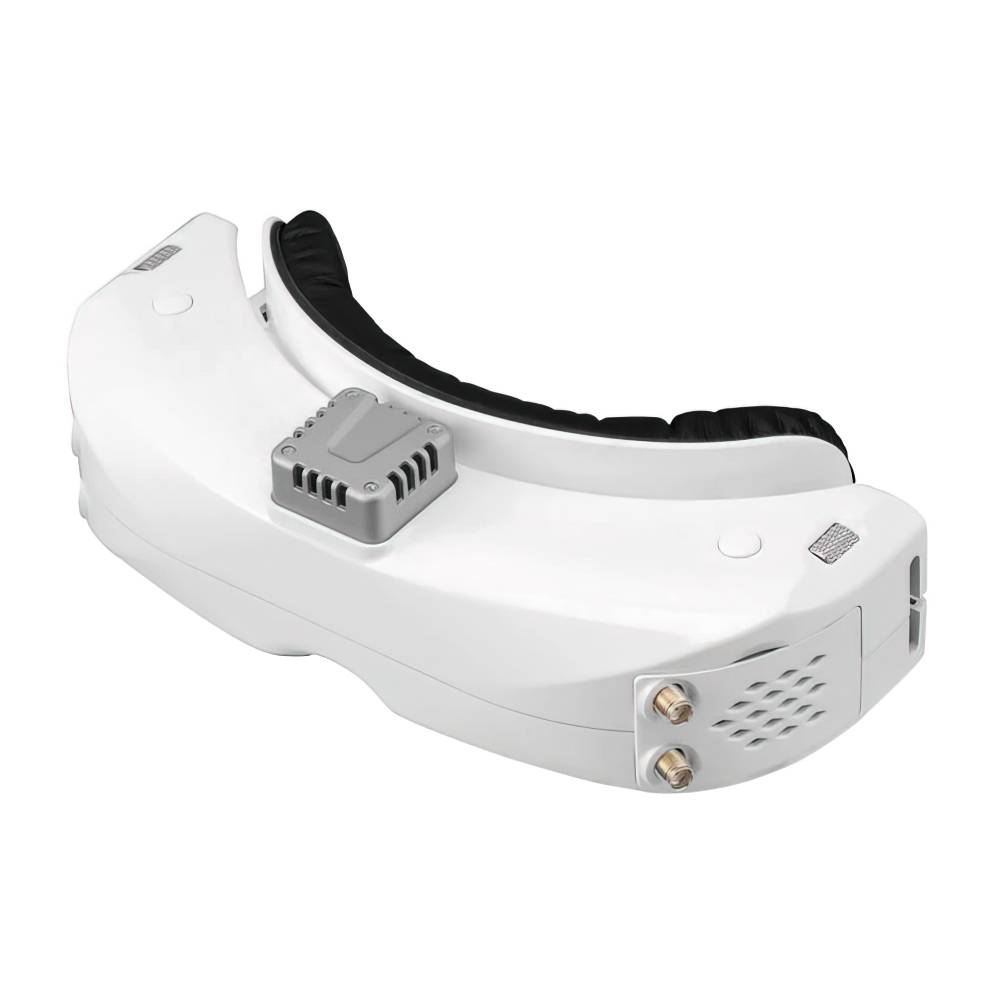

The SKY04L V2 is the Lite version of the SKY04 Series. These Skyzone goggles feature focus adjustment. The 1280*960 high-resolution screen has vivid color and a high contrast ratio, enabling the pilot to see more details while racing. With Steadyview receiver, the receiver merges two signals to one, avoid image tearing and rolling, make the image more stable and clear in challenging condition.
The new OS has 10 languages to select, and the menu system is easy to navigate. The shuttle wheel and new user interface allow the pilot to set all the settings just by rolling the wheel without taking off the goggles. The newly designed optics have a focus adjustment feature and 39 degrees field of view, giving pilots a more immersive FPV experience.
The SKY04L V2 now features an updated 60FPS DVR unit!
Features
- Advanced Screen Settings
- 39° Field of View Angle
- Shuttle Wheel Control
- SteadyView Receiver
- Built-In Headtracker
- Focus Adjustment
- Dual Module Bay
- 60FPS DVR Unit
- 10 Languages
- New UI
-
Specifications
- Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
- DVR: H264, 60fps, SD Card support up to128Gb
- Receiver: 5.8Ghz 48CH Steadyview Receiver
- Interpupillary distance(IPD): 58-71mm
- Power Supply: DC6.5-25.2V/USB5V
- Power Consumption: 720mAat12V
- Dimensions: 185*75*67mm
- Language: 10 Language
- Focus: -6~+6 adjustable
- Resolution: 1280X960
- Aspect Ratio: 4:3/16:9
- FOV (Diagonal): 39°
- Screen: LCOS
- Weight: 267g
- Color: White
Includes
- 1x Skyzone SKY04L V2 Lite Goggles - White
- 1x Sponge Padding Set with velcro
- 1x Steadyview Receiver Module
- 2x Faceplate (wide and narrow)
- 1x Skyzone Goggle Strap
- 2x 5.8GHz 2dB Antennas
- 1x Video/Audio Cable
- 1x Headtracker cable
- 1x USB-C Cable
- 1x User Manual
- 1x Power cable
- 1x Zipper case
