NOTE:
- During testing, we found that some Tactic receivers included with the SCX10 II RTR do not communicate well with high performance servos, and may not function properly with this servo.
- For best results, and the peak performance, we recommend you power this servo with a BEC.
- If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
Features:
- Ideal for any 1.9 to 2.2 Crawler application
- Waterproof up to 1 meter
- 600 oz-in of torque @ 6.0V, and .135 transit speed
- 650 oz-in of torque @ 7.4V, and .13 transit speed
- Brushless motor
- High voltage circuitry
- Full steel gears
- Full aluminum black anodized heat sink case
- Dual ball bearings
- 280mm servo lead

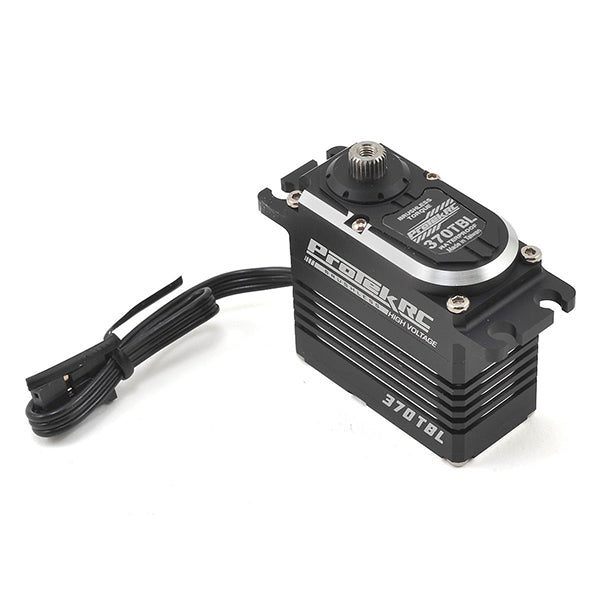

Servo Model
|
370TBL
|
| Recommended Application |
1/10 to 1/8 Scale Crawler
|
| Operating Voltage |
4.8V - 7.4V
|
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.135/60° sec
|
Operating Speed @ 7.4V
|
0.13/60° sec
|
Dynamic Torque @ 6.0V
|
600 oz-in (43.2 kg-cm)
|
Dynamic Torque @ 7.4V
|
650 oz-in (46.8 kg-cm)
|
Stall Current @ 6.0V
|
6A
|
Stall Current @ 7.4V
|
6.4A
|
Motor Type
|
Brushless Digital
|
| Output Shaft |
25 Tooth
|
| Gears |
Steel |
| Weight |
72g |
Pulse/Frequency
|
1520?s / 333hz |
| Dimensions |
40x20x37.8mm |
Length (Bottom to Mount)
|
28.4mm |
NOTE: Requires a servo extension lead for a drop-in TRX-4 fit.
