NOTE: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
Features:
- Used by Ryan Maifield to win the 2019 Roar 4wd Off-Road National Championships
- Ideal for any 1/10 to 1/8 surface application that can benefit from a low profile configuration
- Full aluminum black anodized case
- High voltage circuitry
- 0.08 transit speed, and 230 oz-in of torque @ 6.0V
- 0.06 transit speed, and 290 oz-in of torque @ 7.4V
- Includes aluminum single arm clamping servo horn and servo mounting washers for a rock solid installation
- 140mm long servo lead
- Full metal gears and dual ball bearings
- Brushless motor

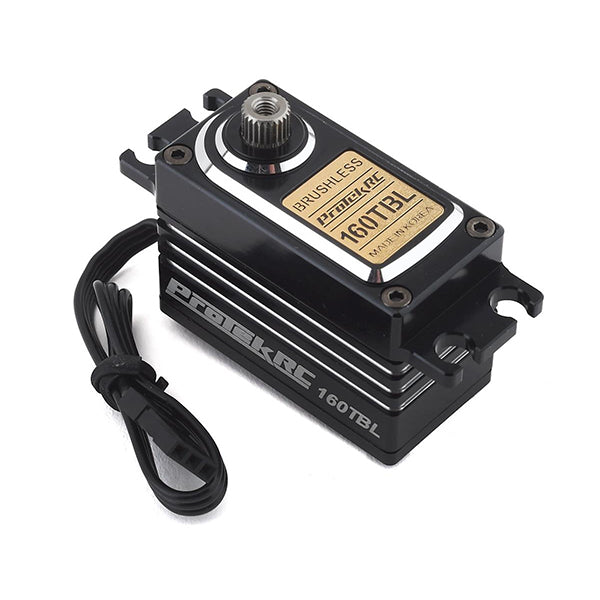

Servo Model
|
160TBL
|
| Recommended Application |
1/10 to 1/8 Scale Surface
|
| Operating Voltage |
4.8V - 7.4V
|
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.08/60° sec
|
Operating Speed @ 7.4V
|
0.06/60° sec
|
Dynamic Torque @ 6.0V
|
230 oz-in (16.5 kg-cm)
|
Dynamic Torque @ 7.4V
|
290 oz-in (20.9 kg-cm)
|
Motor Type
|
Brushless
|
| Output Shaft |
25 Tooth
|
| Gears |
Metal |
| Weight |
55g |
Pulse/Frequency
|
1520?s / 333hz |
| Dimensions |
39.5x20x30.6mm |
Length (Bottom to Mount)
|
19.35mm |
