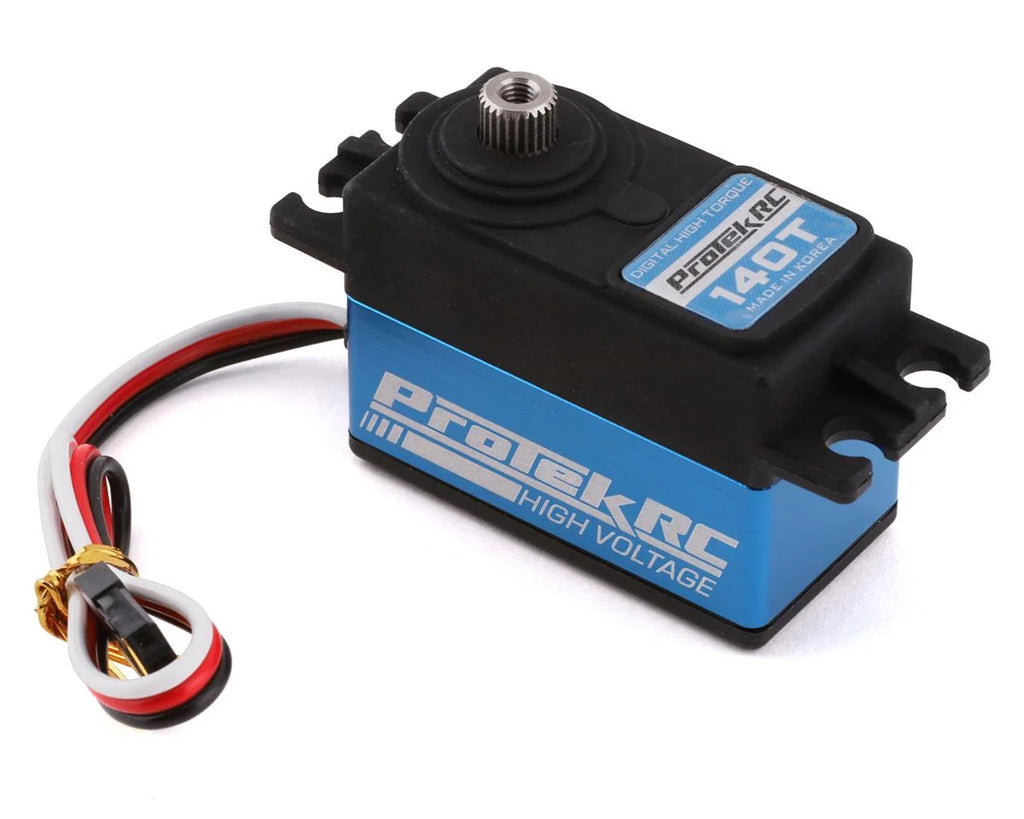

ProTek RC 140T Low Profile High Torque Metal Gear Servo (High Voltage)
Features:
- Low-Profile case saves space and weight
- Ideal for any 1/12 to 1/10 scale vehicle application
- Plastic case with aluminum center band
- High voltage circuitry
- 0.10 transit speed, and 185 oz-in of torque @ 6.0V
- 0.08 transit speed, and 215 oz-in of torque @ 7.4V
- 0.07 transit speed, and 230 oz-in of torque @ 8.4V
- Full metal gears and dual ball bearings
- 160mm long 22awg connector wire
- Coreless motor
Servo Model
|
140T
|
| Recommended Application |
1/12 to 1/10 scale Surface
|
| Operating Voltage |
4.8V - 8.4V
|
| Operating Temperature |
14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V |
0.10/60° sec
|
Operating Speed @ 7.4V
|
0.08/60° sec
|
|
Operating Speed @ 8.4V
|
0.07/60° sec
|
Dynamic Torque @ 6.0V
|
185 oz-in (13.3 kg-cm)
|
|
Dynamic Torque @ 7.4V
|
215 oz-in (15.5 kg-cm)
|
Dynamic Torque @ 8.4V
|
230 oz-in (16.6 kg-cm)
|
Motor Type
|
Coreless Motor
|
| Output Shaft |
25 Tooth
|
| Gears |
Metal |
| Weight |
49.8g |
Pulse/Frequency
|
1520Us / 333hz |
| Dimensions |
39.5x30.5x20mm |
