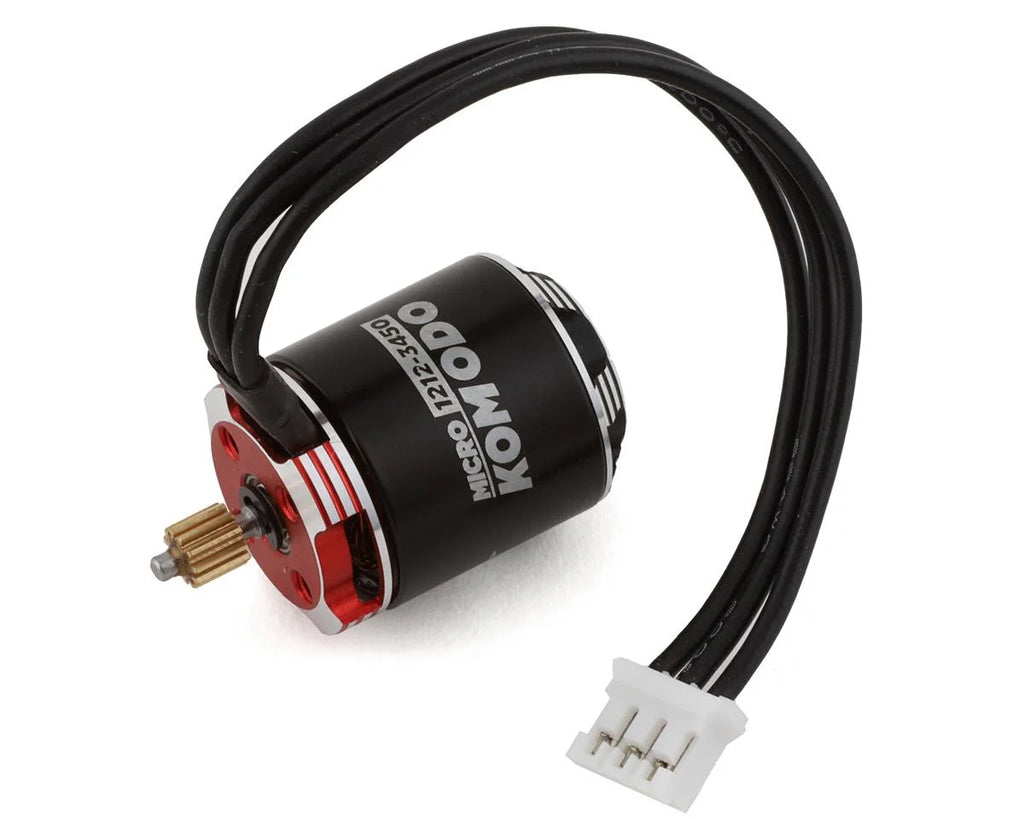

The Furitek Micro Komodo Brushless Motor is a high torque option for space conscious 1/24 scale builds. Don't let the size of this motor fool you. A 12-pole motor design with a precision balanced rotor allow for extremely low RPM while maintaining maximum torque and efficiency. Package includes one micro motor with pre-installed pinion.
Features:
- 12 Pole hi-torque motor design
- Super thin (0.2 mm) stator laminations
- Japanese NMB --High RPM ABEC5 bearings
- Precision balanced rotor for best reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
- High purity and higher temperature single copper windings
- Excellent heat dissipation for maximum efficiency
Specifications:
kV(RPM/Motor): 3450
No-load current: 0.7A @ 10V
Watt: 120W
Battery: 2-3S
Resistance: 0.16Ohms
Max Current: 10A
Slot/Pole: 12
Motor size: 15.5x20.6mm
Shaft: 1.5x6mm
Weight: 17.5g
