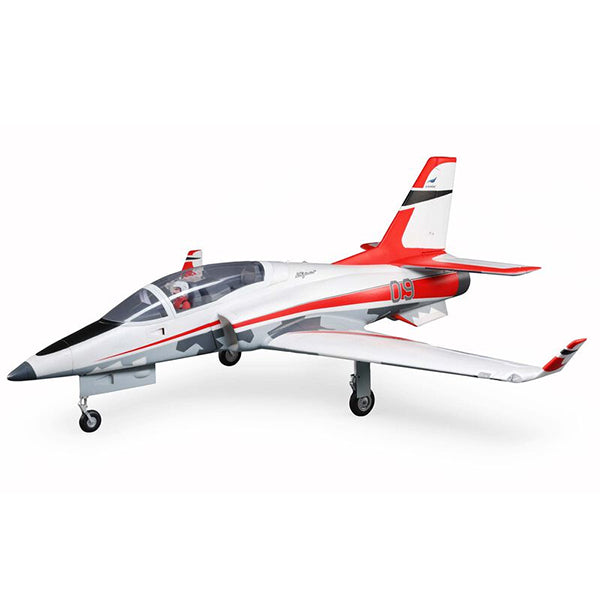

This is the E-flite Viper 90mm EDF BNF Basic Electric Ducted Fan Jet is a larger version of E-flite's 70mm EDF. This Viper 90mm EDF Jet has a lightweight composite-reinforced EPO airframe that is finished in the Aircraft Studio Design trim from the popular 70mm model. It has eight factory-installed digital, metal-geared servos with ball-link equipped linkages, plus control surfaces with pinned hinges, to deliver accurate control at all speeds. Functional features include flaps, LED landing and navigation lights, and electric retracts with shock-absorbing, trailing-link struts on the nose and main gear so you can fly from grass and other surfaces with ease.
Features:
- The best choice for a first large-scale EDF jet model because it's easy to take off, fly and land
- Extremely wide performance envelope and speed range, capable of top speeds up to 120+ MPH
- Functional features including LED navigation and landing lights, nose gear door and flaps
- Reliable electric retracts with shock-absorbing, trailing-link struts for grass and other field operation
- Expertly engineered and optimized ducting for incredibly efficient performance without "cheater" holes
- 12-blade 90mm fan delivers excellent top speed and vertical performance plus turbine-like sound
- Factory-installed, high-power 6S-compatible 3670-1950Kv brushless inrunner motor and 130-amp ESC
- 130-amp Spektrum Avian™ Smart ESC provides real-time battery voltage, motor RPM and other data, plus reversing capabilities, via compatible receivers and transmitters
- Fits a wide range of 6S batteries from 4000-7000mAh, or up to two 6S 3200-5000mAh batteries in parallel (or series for ARF Plus version), to deliver class-leading flight times and performance
- Spektrum™ AR637TA receiver with full-range telemetry and industry-leading DSMX® technology
- Easy to fly with innovative and optional-use SAFE® Select flight envelope protection
- The unmatched stability and locked-in feel of exclusive AS3X® technology
- Removable/replaceable winglets, plastic capped nose and intake ducts for added durability
- No glue required for assembly and can be ready to fly in less time than it takes to charge a battery
- Two-piece wing with convenient V2 hands-free connections for easy storage and transport
- Large and convenient top hatch with clear canopy, cockpit detail and pilot figure
- Extremely durable, fully molded and composite-reinforced EPO airframe
- Unique and highly visible trim scheme by Aircraft Studio Design
Specifications:
Material: EPO
Skill Level: Level 2
Speed Control: Included
Battery: Sold Separately
Charger: Sold Separately
Fan Size: 90mm EDF
Flaps: Yes
Trim Scheme Colors: White / Red
Radio: Sold Separately
Completion Level: Bind-N-Fly Basic
Motor Size: 3670 - 1950Kv Brushless Inrunner (installed)
Product Length: 50.43" (1281 mm)
Receiver: Included
Servos: Included
Wingspan: 55.12" (1400 mm)
Retracts: Included
Approximate Assembly Time: Less than 1 Hour
Product Weight: 7.04lbs (3193g) with 6S 5000mAh Battery, 5.45lbs (2473g) w/o Battery
Technology: Smart, AS3X and SAFE
Power Type: Electric
Includes:
- (1) E-flite Viper 90mm EDF BNF Jet with
- (1) Spektrum Avian 130A Brushless Smart ESC (installed)
- (1) Brushless Inrunner Motor (installed)
- (1) 90mm EDF unit (installed)
- (8) Digital, Metal-Geared Servos (installed)
- (1) Spektrum AR637TA 6-Channel Receiver (installed)
Needed to complete:
-
For Basic Functionality:
- (1) Full-range 6 Channel Spektrum DSMX/DSM2 Compatible Transmitter
- For SAFE Select Functionality:
- (1) Full-range 7 Channel Spektrum DSMX/DSM2 Compatible Transmitter
- For Full Functionality and Motor Reversing:
- (1) Full-range 8+ Channel Spektrum DSMX/DSM2 Compatible Transmitter
- (1) 6S 22.2V 4000–7000+mAh 30+C LiPo with EC5 or IC5 Connector
- (1) Compatible LiPo Charger
- (1) LiPo Safe Charging Bag
