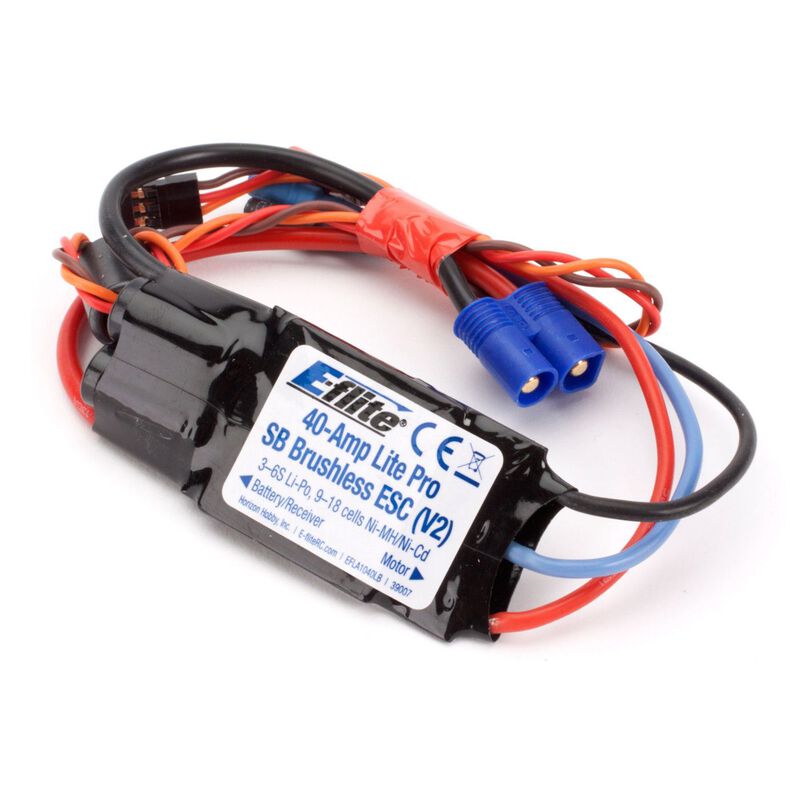

This is the E-flite 40-Amp Lite Pro V2 Switch-Mode BEC Brushless ESC. This high-quality sensorless brushless electronic speed control is lightweight and efficient, and features an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Features:
- Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
- 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges, use with a large variety of brushless motors
Specifications:
Continuous Maximum Current: 40A (Proper cooling and airflow required)
Input Connector Types: 13 AWG with E-flite EC3 Connector
Output Connector Types: 16 AWG with 3.5mm Gold Bullet Connectors
Length: 66.0mm (2.60 in)
Width: 31.0mm (1.20 in)
Height: 12.0mm (0.47 in)
Weight: 48.0 g (1.70 oz)
Cells w/BEC: 3–6S Li-Po or 9–18 Ni-MH/Ni-Cd
